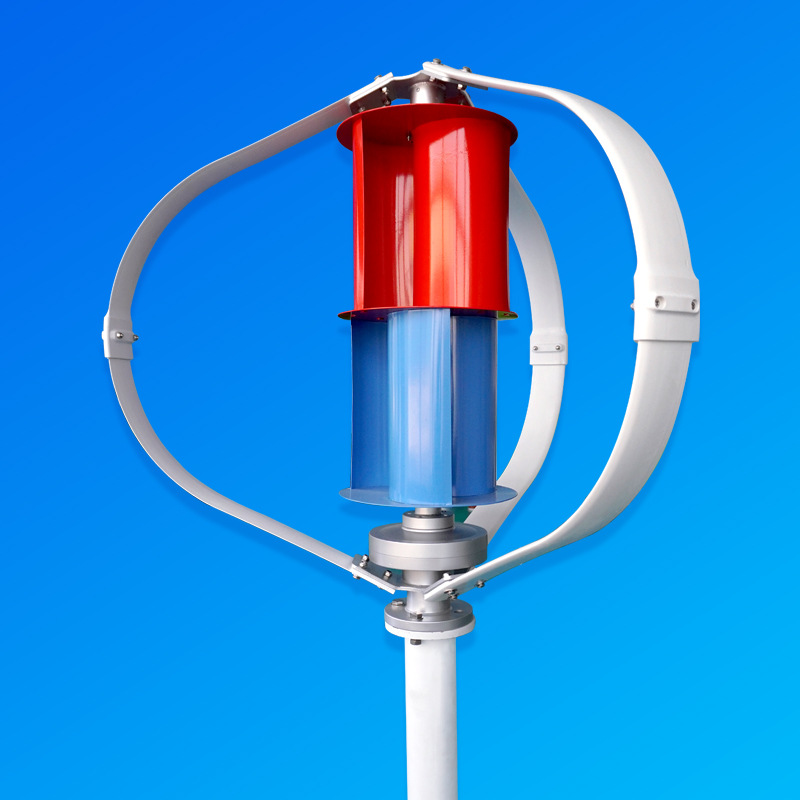

Wind turbine Q type

Model: JQ

Power: 100w-1kw

Energy: IP54

Description: ModelJQ-100WJQ-200WJQ-300WJQ-500WJQ-1000WRated power100W200W300W500W1000WMax Power(w)110W220W325W540W1080WBlades Height (m)0.87m0.87m0.87m0.87m1.3mRated voltage12V12V12V12V12V/24VStart-up wind speed2m/s2m/s2m/s2.5m/s2.5m/sRated wind speed11m/s11m/s11.5m/s11m/s11.5m/sGenerator typeaglev generatorNumb

Send Inquiry

Model	JQ-100W	JQ-200W	JQ-300W	JQ-500W	JQ-1000W
Rated power	100W	200W	300W	500W	1000W
Max Power(w)	110W	220W	325W	540W	1080W
Blades Height (m)	0.87m	0.87m	0.87m	0.87m	1.3m
Rated voltage	12V	12V	12V	12V	12V/24V
Start-up wind speed	2m/s	2m/s	2m/s	2.5m/s	2.5m/s
Rated wind speed	11m/s	11m/s	11.5m/s	11m/s	11.5m/s
Generator type	aglev generator
Number of blades	4 normal blades + 3 high-speed blades
Safety wind speed	35m/s
Braking method	Electromagnet
Blade material	Casting aluminum alloy
Working temperature	-40℃～80℃
Insulation class	F
Protection class	IP54
Lifespan	25 Years
