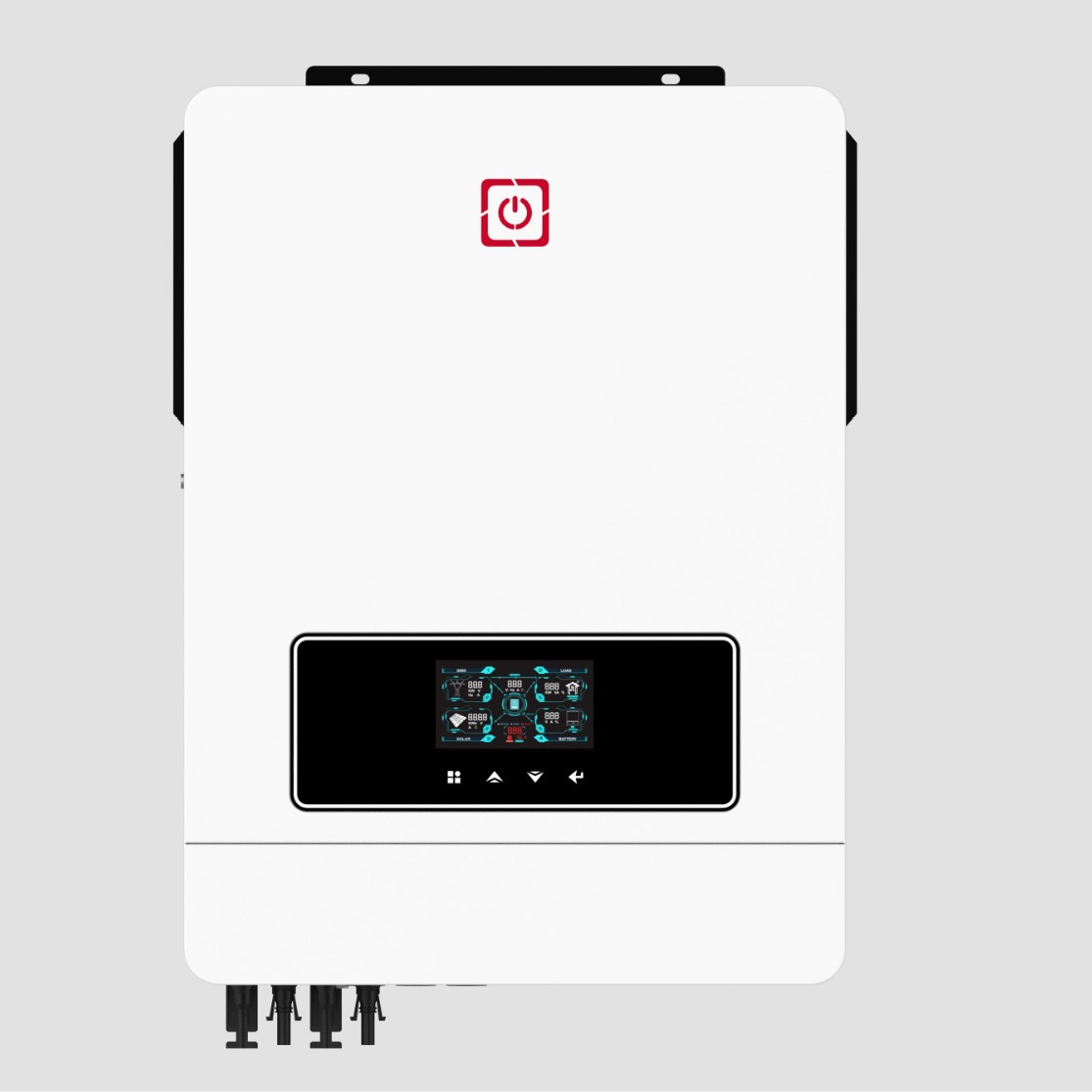

MAX-Series

MAX-Series

Model: MAX-7200W/8200W/10200W

Power: 7200W/8200W/10200W

Energy: IP21

Description: Pure sine wave solar inverter(on/of Grid).High PV input voltage range(90 – 500VDC).Output power factor 1.0.Built-in anti-dust kit for harsh environment.WIFI&GPRS available for IOS and Android.Smart battery charge design to optimize battery life.Inverter can run without battery.Dual output.One-key restoration to factory settings .Dual PV input.Built-in Lithium battery automatic activation.Touch button.On Oﬀ Grid Work Mode.Built-in 160A MPPT solar charger (for 8.2KW,10.2KW);140A(for 7.2KW)Built Remove LCD Display and Key.Accept OEMAccept customization

Category: Inverter

Description
Reviews (0)

Product Data Sheet

MODEL	MAX-7200W	MAX-8200W	MAX-10200W
Phase	1-phase
Maximum PV Input Power	8200W	5400W+5400W	5400W+5400W
Rated Output Power	7200W/7200VA	8200W/8200VA	10200W/10200VA
Maximum Solar Charging Current	140A	160A	160A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum Current	360/500VDC
Stat-up Voltage/Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90-450VDC
Maximum Input Current	1/23A	2/18A	2/18A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	190-253VDC
Nominal Output Current	31.3A	35.6A	44.3A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	7200W	8200W	10200W
Maxium MainLoad	7200W	8200W	10200W
Maxium Second Load(battery mode)	2400W	2733W	3400W
Maxium Load Cut Off Voltage	52VDC	52VDC	52VDC
Maxium Load Return Voltage	54VDC	54VDC	54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Frequency Range	49-51HZ
Maxium AC Input Current	40A	40A	50A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
MPPT Voltage Range	90-450VDC
Maximum Input Current	1/23A	2/18A	2/18A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	48V
Maximum Solar Charging Current	140A	160A	160A
Maximum AC Charging Current	120A	140A	140A
Maximum Charging Current	140A	160A	160A
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Stat-up Voltage/Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90-450VDC
Maximum Input Current	1/23A	2/18A	2/18A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	190-253VDC
Nominal Output Current	31.3A	35.6A	44.3A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Maximum Input Current	40A	40A	50A
Maximum AC Charging Current	120A	140A	140A
GENERAL
PHYSICAL
Dimension,DWH(mm)	500390130	500420160	500420160
Carton Dimension,DWH(mm)	588463205	618463205	618463205
Net Weight(kgs)	13.6	14.6	15
Gross Weight(kgs)	14.9	16.1	16.5
INTERACE
Communication Port	RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operationg Temperature	-10℃-50℃
STANDARD
Compliance Safety	CE
