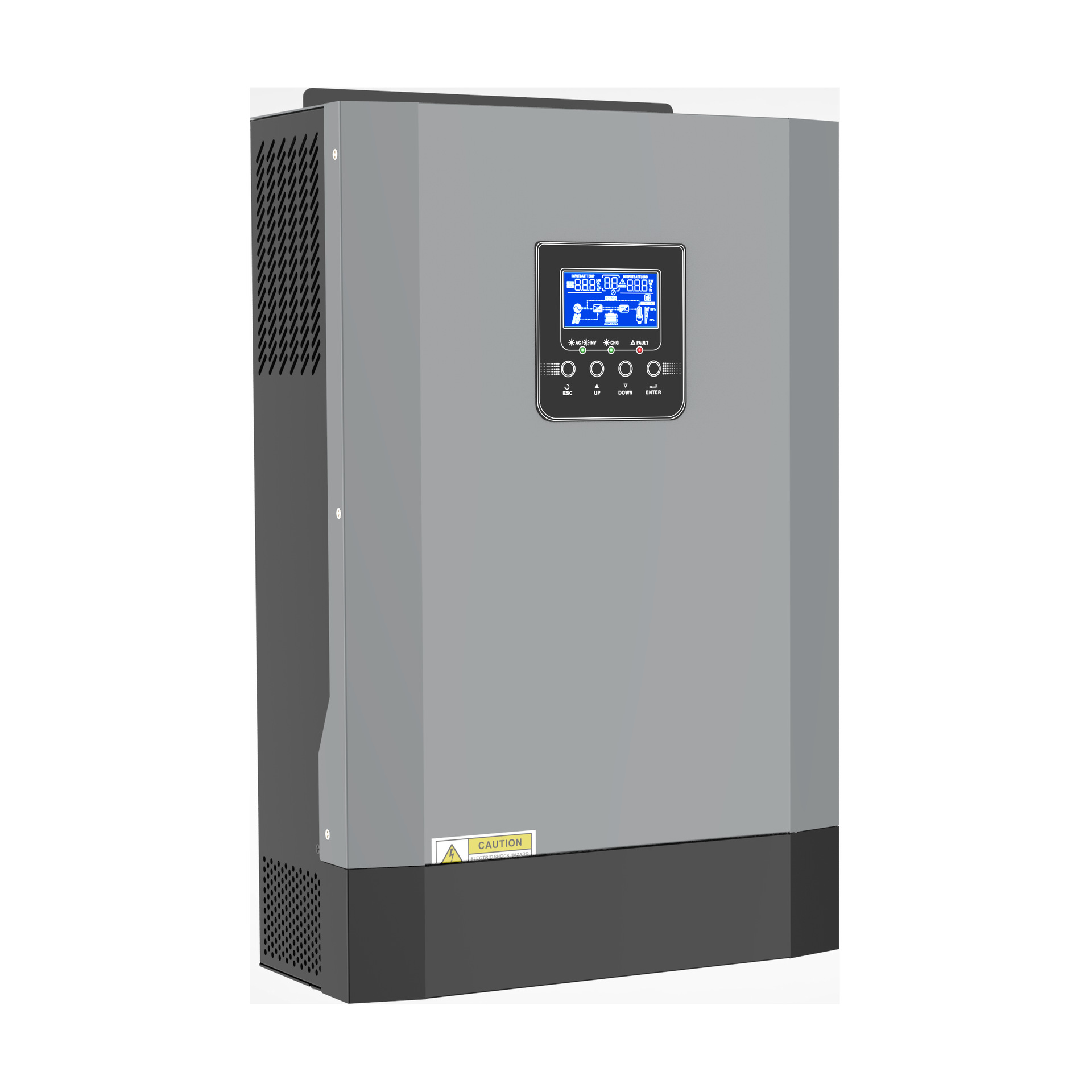

Model:MPS-5500W
Rated output power:5500VA/5500W
AC Input:Voltage 230VAC
Optional Voltage Range:170-280VAC (for personal appliances) 90-280VAC (for household appliances)
Frequency range: 50Hz/60Hz (auto-sensing)
AC Voltage Adjustment Rate:230VAC±5
Surge power:11000VA
Efficiency (Peak) PV to INV :97
Battery INV Efficiency (Peak):94
Transmission time “10ms (for personal appliances);
20ms (for household appliances)”
Battery Voltage: 48VDC
Float Charge Voltage: 54VDC
Overcharge Protection:61VDC
Maximum Charging Current:80A
Solar Charger Type:MPPT
Maximum PV array power :6000W
MPPT Range & Working Voltage :120-500VDC
Maximum PV Array Open Circuit Voltage :500VDC
Maximum Solar Charging Current :110A
Maximum Efficiency :98
Dimension, D*W*H(mm):472*298*129
Net weight(kg) :10.5
Gross weight(kg) :12
Communication Interface :RS232/RS485(standard)/WIFI(optional)
Ambient humidity :5% to 95% relative humidity (non-condensing)
Operating Temperature :-10℃-50℃
Standard :CE
